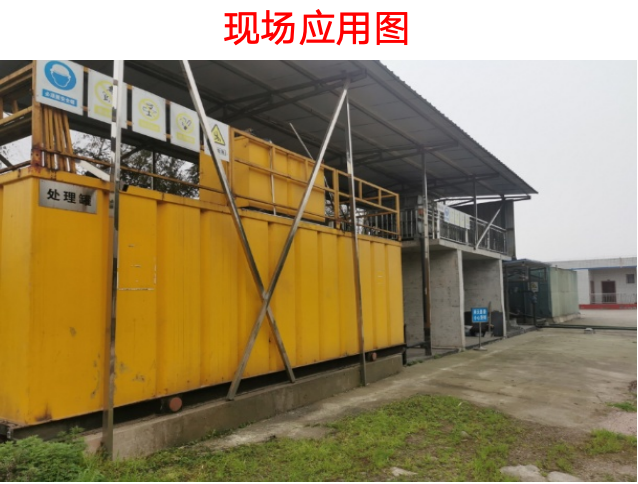

This device adopts the gas field water pre-treatment and re-injection process of "separation of oil + multi-level natural sedimentation + flocculation
sedimentation + chemical dosing disinfection + deep injection", which uses physical and chemical methods to efficiently remove various pollutants in
produced water. It can effectively prevent cracks and holes from being blocked, reduce the floor area occupied by water treatment facilities, and lower
operating costs.
Main technical parameters
Design processing
scale
600 m3/d
Design technology
Oil removal + multi-stage natural sedimentation + flocculation
sedimentation + chemical disinfection
Design influent
water quality
-
Design the effluent
water quality
pH 6 -
10^4 cells/mL;
sulfate
Note 1: The symbol "*" indicates that the pre-treatment process control for the back-injection of carbon steel
tubing in the back-injection wells is carried out. Note 2: 1 < n < 10, the water quality analysis method shall be
implemented in accordance with the provisions of SY/T 5329
